Product Description
COMP Cams Valve Springs High Performance - 26918-16

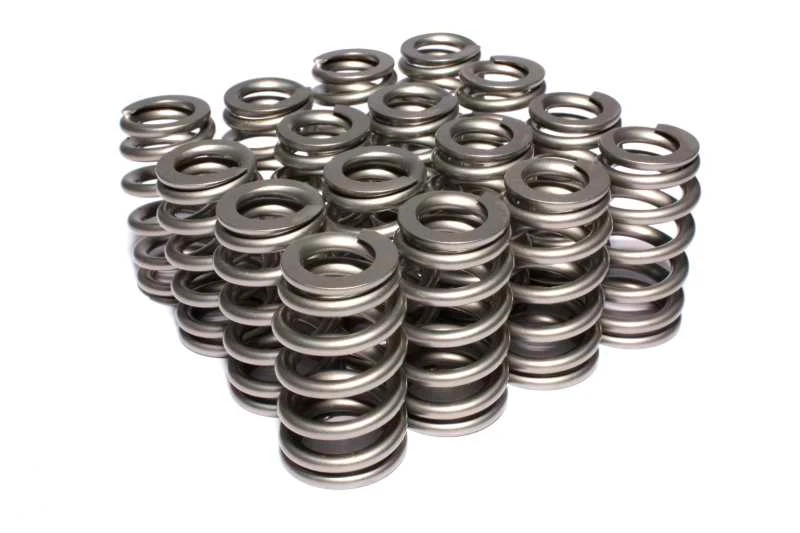

Valve Spring, Single, Beehive, 1.075 in./1.310 in. Outside Diameter, 372 lbs./in. Rate, 1.140 in. Coil Bind, Set of 16
Valve springs are one of the most critical and overlooked components in your engine. They must be matched to your cam in order for the engine to reach its full potential. It does absolutely no good to install a cam that will perform up to 8,000 rpm if you do not have the correct springs. Use the only valve springs that will give the recommended spring pressure with the valve both on the seat and at maximum lift. COMP Cams valve springs are offered in single and dual styles to meet your cam requirements.
COMP Cams Valve Springs
Valve Spring Style:
Beehive
Number of Springs Per Valve:
Single
Maximum Valve Lift (in.):
0.625 in.
Retainers Included:
No
Outside Diameter of Outer Spring (in.):
1.075 in./1.310 in.
Coil Bind Height (in.):
1.140 in.
Damper Spring Included:
No
Spring Rate (lbs./in.):
372 lbs./in.
Inside Diameter of Outer Spring (in.):
0.650 in./0.885 in.
Locks Included:
No
Valve Stem Seals Included:
No
Valve Springs Coated:
No
Quantity:
Sold as a set of 16.
Installed Height (in.):
1.800 in.
Seat Pressure at Installed Height (lbs.):
125 lbs.
Open Height (in.)(application):
1.150
Open Pressure (lbs.):
367 lbs.
Remanufactured:
No
Application Notes:
O.D. at the top of the spring is 1.075 in. and 1.310 in. at the bottom. I.D. at the top of the spring is 0.650 in. and 0.885 in. at the bottom.
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2004-2007 | Cadillac | CTS | V |
| 1998-2002 | Chevrolet | Camaro | Z28 |
| 1998-2002 | Chevrolet | Camaro | Z28 SS |
| 2008 | Chevrolet | Corvette | 427 Limited Edition Z06 |
| 2003 | Chevrolet | Corvette | 50th Anniversary Edition |
| 2003 | Chevrolet | Corvette | 50th Anniversary Edition Pace Car |
| 1997-2007,2009-2011 | Chevrolet | Corvette | Base |
| 2010-2011 | Chevrolet | Corvette | Grand Sport |
| 1998 | Chevrolet | Corvette | Indianapolis 500 Pace Car |
| 2001-2004,2007-2011 | Chevrolet | Corvette | Z06 |
| 2011 | Chevrolet | Corvette | Z06 Carbon |
| 2009-2011 | Chevrolet | Corvette | ZR1 |
| 2006-2007 | Chevrolet | Impala | SS |
| 2006-2007 | Chevrolet | Monte Carlo | SS |
| 2005-2006 | Chevrolet | SSR | Base |
| 2006 | Chevrolet | Trailblazer | SS |
| 1998-2002 | Pontiac | Firebird | Formula |
| 1998-2002 | Pontiac | Firebird | Trans Am |
| 2005-2007 | Pontiac | Grand Prix | GXP |
| 2004-2006 | Pontiac | GTO | Base |
