Product Description
Part Number:mlr6406807HD
Description:RXT 1200 STL LSA 1-1/8 X 26 SPL SPG HUB 8 BOLT MODULAR ASSY
Additional Counter Weight Kit Required:Not Required
Horsepower Rating:1200
Throwout Bearing Included:No
Spline:1 1/8" x 26
Pressure Plate Style:Diaphragm
Pilot Bushing Material:N/A
Pilot Bushing Included:No
Number of Discs:Double
Make:Cadillac
Hub Style:Sprung
Hardware Included:Yes
Alignment Tool Included:Yes
Flywheel Material:Steel
Flywheel Included:Yes
Engine Balance:Internal Balance
Engine:2009-Up LSA & LSX 454 8 Bolt Crank
Disc Style:Full Face/Multi Pad
Disc Material:Ceramic
Disc Diameter:9-11/16"
Clutch Usage:Street
Clutch Patterns:RST/RXT Steel Adapter Plate Pattern
Throwout Bearing Style:Hydraulic
Make:Cadillac, Chevrolet
Engine:2009-15 LSA & 2014-20 LT1,LT5 8 Bolt Crank

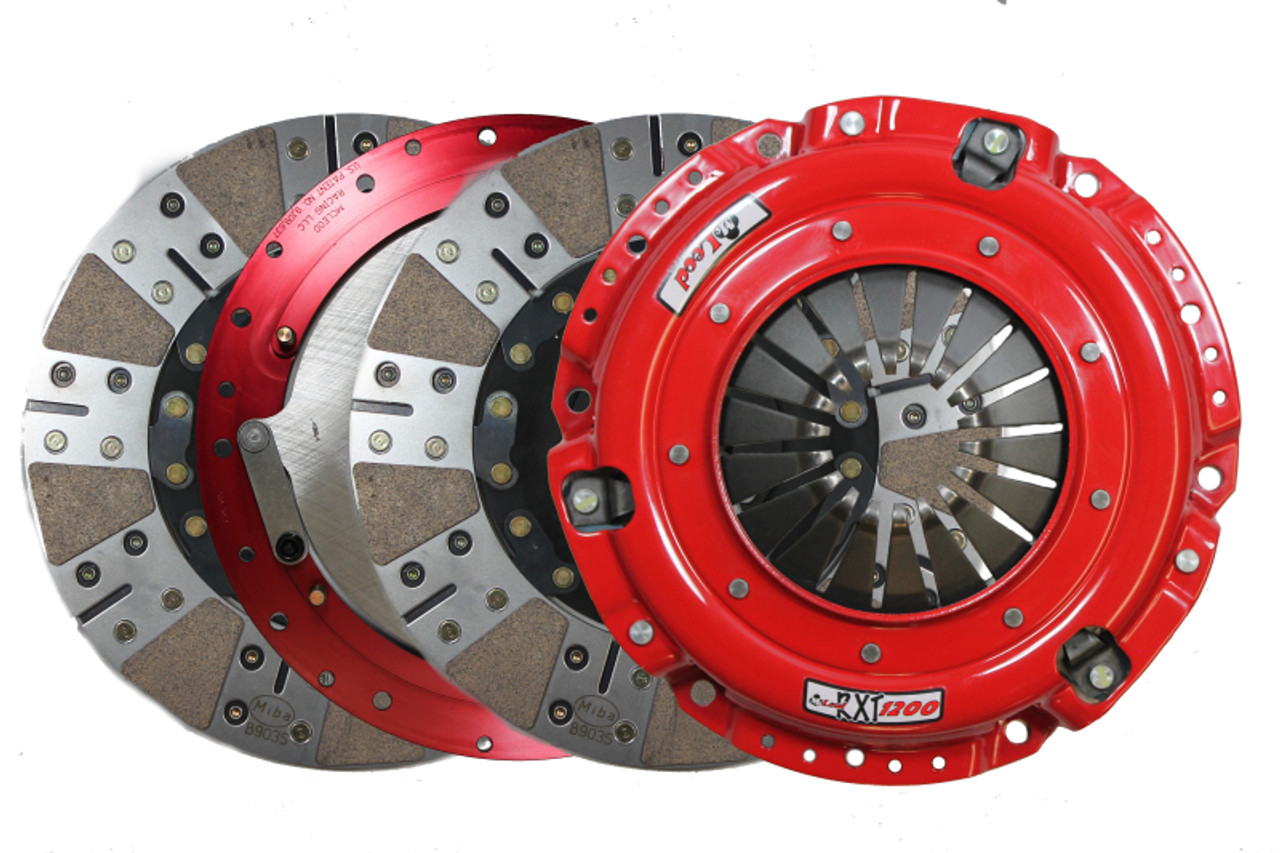

Intended for the high horsepower street/strip fan, the McLeod RXT 1200 street twin clutch kit is able to handle 1200hp. This clutch can handle almost any horsepower you can throw at it and still remain street-able. Ceramic lined clutch discs will provide smooth engagement with a moderate pedal effort to make this clutch kit ideal for the street/strip enthusiast. . This clutch is perfect for the person that wants the best of both worlds. You want to drive to the track then rip off a bunch of ¼ mile passes then drive back home, the RXT 1200 is what youll need! This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a patented approved adapter ring to bolt to your supplied flywheel. Complete unit with dedicated flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars.
Features and Benefits
Technical Bulletin
Owner's Manual
Installation Instructions
This Part Fits:
Year | Make | Model | Submodel |
---|---|---|---|
2009-2015 | Cadillac | CTS | V |
2020-2021 | Chevrolet | Camaro | LT1 |
2016-2021 | Chevrolet | Camaro | SS |
2012-2015,2017-2021 | Chevrolet | Camaro | ZL1 |
2017-2019 | Chevrolet | Corvette | Grand Sport |
2014-2019 | Chevrolet | Corvette | Stingray |
2015-2019 | Chevrolet | Corvette | Z06 |
